CENTRE OUTLET AQUALUNA LINEAR DRAINS

Made from 304 stainless steel. Available in different styles, our drains are sold in standard lengths with centre outlets. Sold as a fully welded unit, our drains are the easy drop in solution for your bathroom, shower or kitchen application.

Our drain bases have folds in the base to allow for water flow directly towards the centre outlet. This excludes our DIY outlet and custom position outlet shower drains as they don't have folds towards the outlet, but they have a pressed V in the base but not towards any direction.

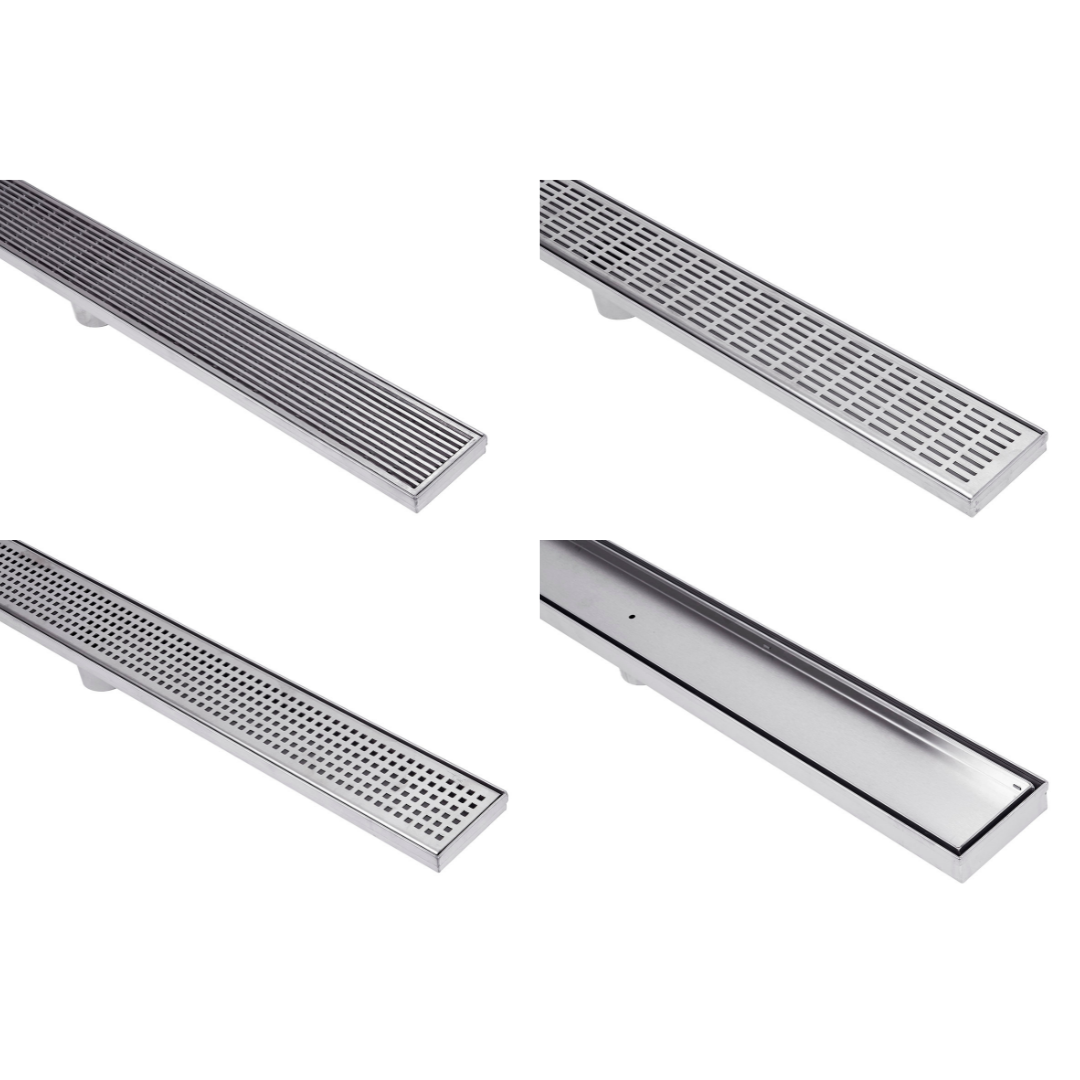

Lines, Square and Brick Pattern

• Lines, Square and Brick Pattern grate top is made from 1.5mm stainless steel

Lines pattern is available in 100mm wide x 20mm deep or 85mm wide x 20mm deep

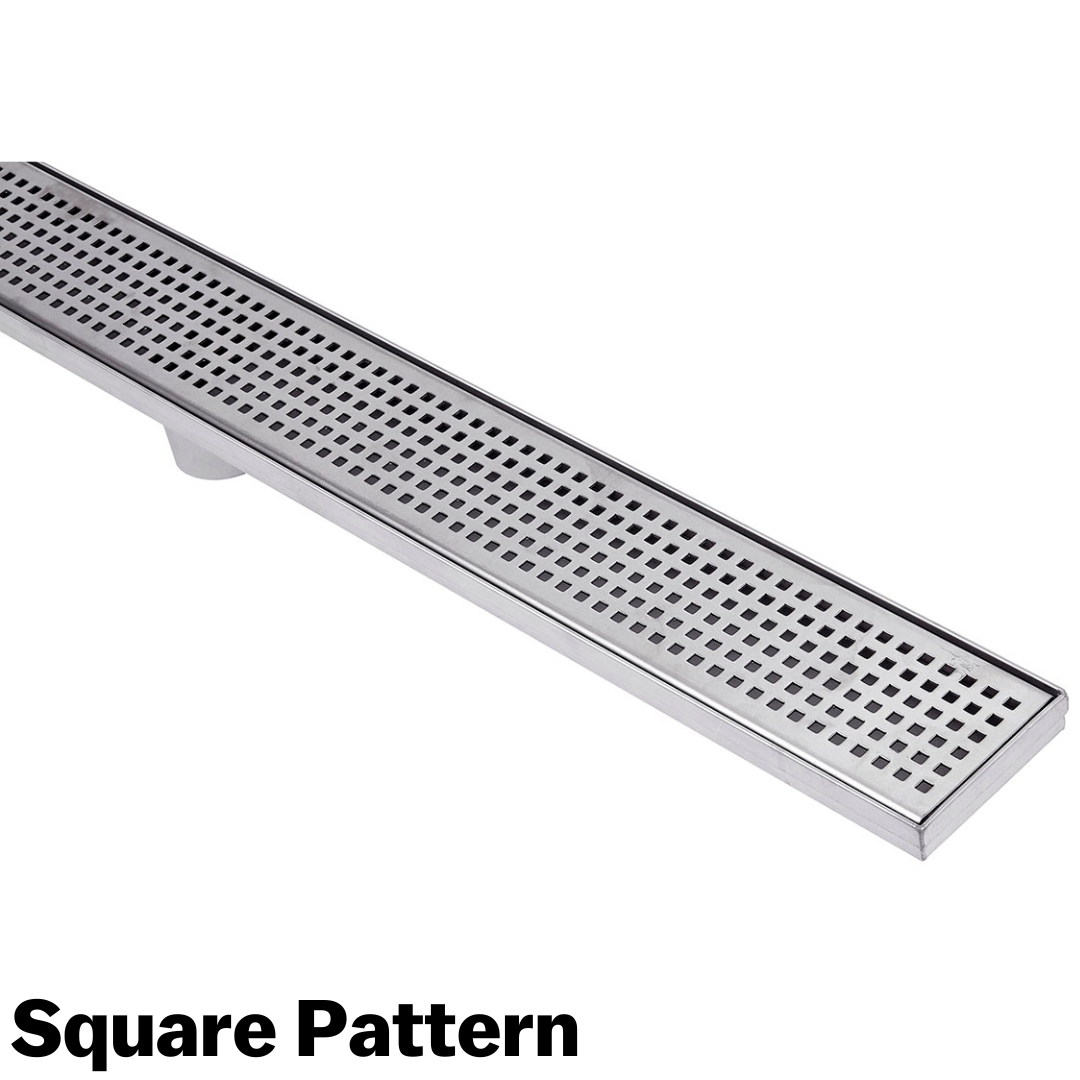

Square pattern is available in 85mm wide x 20mm deep or 70mm wide x 22mm deep

Brick pattern is available in 85mm wide x 20mm deep

PLEASE NOTE BRICK AND SQUARE PATTERN ARE DISCONTINUED AND CANNOT BE RETURNED FOR CHANGE OF MIND.

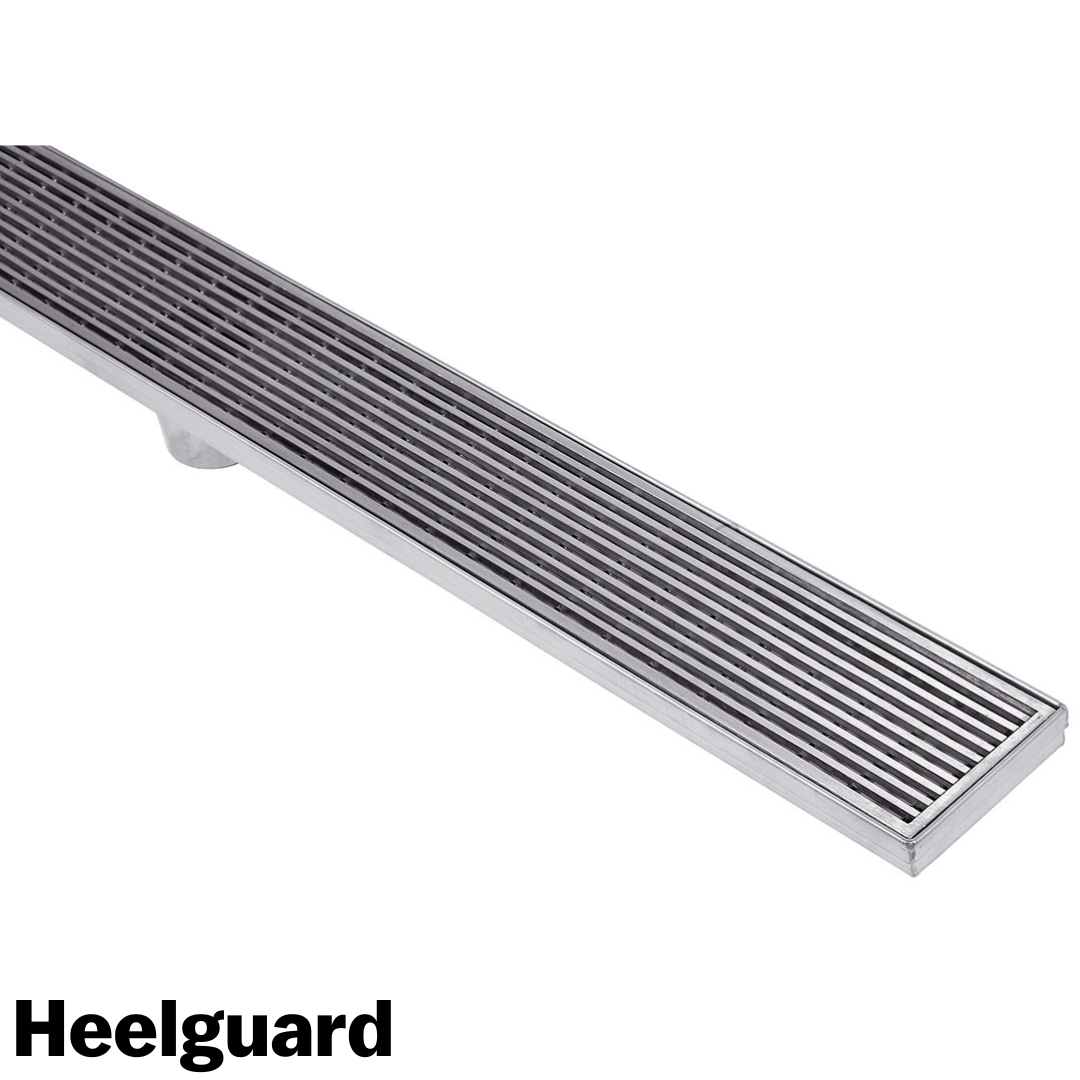

Heelguard Pattern

• Our Heelguard pattern grates are made from 3mm Wedge Wire welded with cross braces and full edge bars around the perimetre.

Our heelguard pattern is available in 70mm wide x 22mm deep, 85mm wide x 20mm deep or 100mm wide x 20mm deep

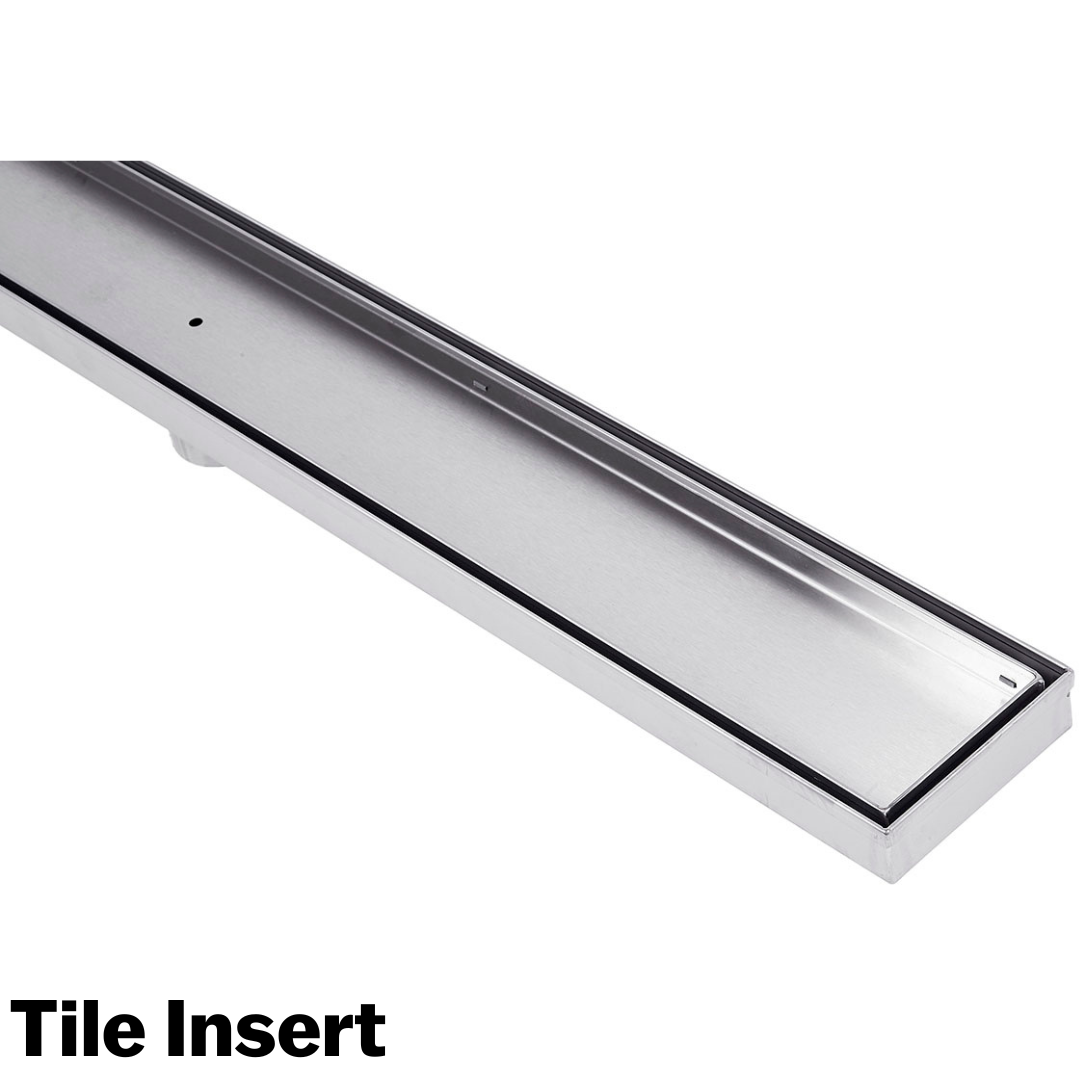

Tile Insert

Our tile insert pattern is available in 100mm wide x 30mm deep and 70mm wide x 25mm deep.

Outlet Positioning

• On our 70mm wide (all styles), 85mm wide (all styles) and 100mm wide (tile insert) drains the outlet is 50.8 OD.

• On our 100mm wide lines and heelguard pattern drains the outlet is 80mm in the centre of the drain.

This product is made from 304 stainless steel. Suitable for use in bathrooms, showers, laundries and many other internal applications.

Please click here to see product drawings for our 70mm wide shower drains.

Please click here to see product drawings for our 85mm wide shower drains.

Please click here to see product drawings for our 100mm wide shower drains.

The advantages of our stainless steel heelguard include:

- 3mm Wedge Wire with 4mm Aperture

- 5mm (x20mm deep) edge bar all the way around the grate - eliminating any sharp edges

- Cross bars every 25mm, not touching base of drain the base of the drains allowing plenty of water flow

- Tapered cross bars reduces the buildup of dirt & grime

- Heel & Pet Friendly
