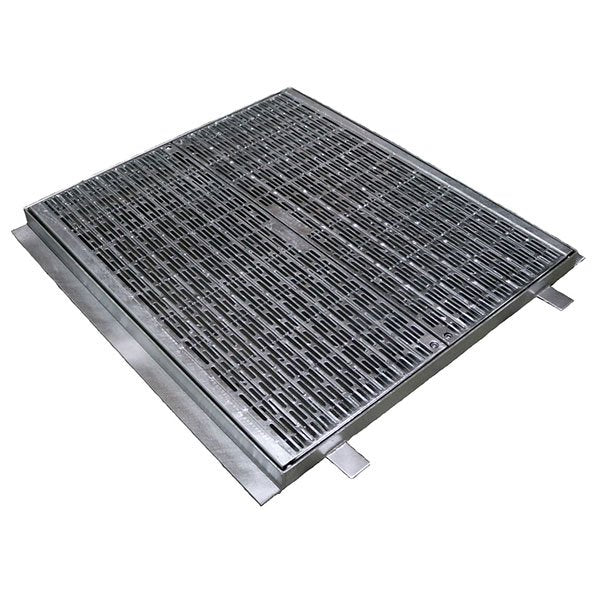

Heelguard Cast-In Hinged Sump Pit Grates stand out from standard grates with a design focused on safety and convenience. Slotted heelguard grates and frames are specifically engineered to be safe for high-heel shoes, making them ideal for high pedestrian traffic areas by preventing heels from getting caught, thereby minimizing the risk of falls and injuries.

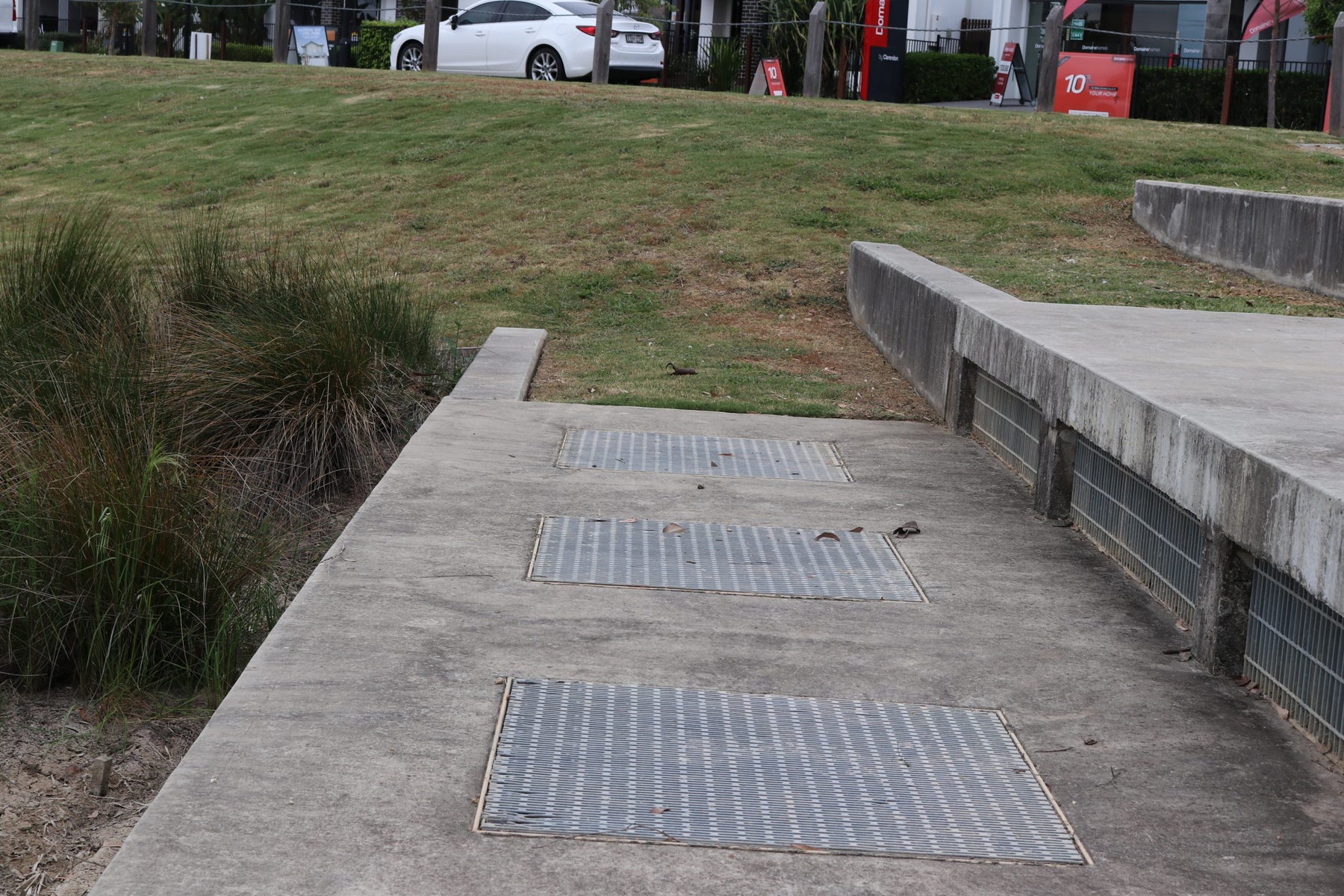

These grates are cast into pavement areas above the pit and include cast-in handles for easy maintenance access without affecting the integrity or appearance of the surrounding pavement. Built for safety and durability, they combine slip resistance with the strength to withstand heavy traffic.

Civilcast Slotted Heelguard Sump Grates are available in sizes up to 1200 x 1200 mm clear opening in Classes B and D, and can also be encased in concrete.

Benefits:
Bike safe
AS 3996-2019
Heavy duty solid bar hinge
Pedestrian safe
Lockable
Heelguard

Please click here for product brochure.

Please Note: All returns and exchanges will incur a 25% restocking fee.

The Class B product is medium-duty, suitable for cars and light trucks, and is typically used in pedestrian areas or residential driveways.
Class D product is designed for pedestrians, cars, and trucks, making it ideal for driveways in commercial and industrial areas.

With our extensive range of Civil Cast products, we offer next-day delivery within the Sydney Metro for any orders processed before 12pm. We have 2 delivery options on offer:

Option 1: Customer off load - this delivery option is for customers who have access to both facilities and machinery available on-site in order to assist in offloading the truck. (no HIAB required)

Option 2: Hiab Delivery option - Alternatively, if you do not have access to any kind of machinery on site, we can provide a truck that will come with a HIAB to assist with offloading the goods from the truck. This option is perfect for customers who don’t have access to facilities to help with offloading goods from the truck, our truck does all the hard work for you!

Please note that Hiab truck deliveries can only unload materials within the front or back yard boundary. We cannot guarantee placement in an exact location or the ability to lift materials above the ground floor (first floor or higher) due to various constraints.

Due to safety, please ensure the correct of the above 2 options is selected based on your requirements. If delivery can't be completed—due to lack of machinery or delays exceeding 15 minutes—a re-delivery fee will apply.
