Metal Slip Joints for Concrete
Protect your masonry from the silent forces of thermal movement. Our Pre-greased Galvanised Slip Joint is the technical solution for managing the inevitable expansion and contraction between differing building materials. By creating a low-friction separation layer at the junctions of brickwork and concrete, this joint allows materials to move independently.
Specifications

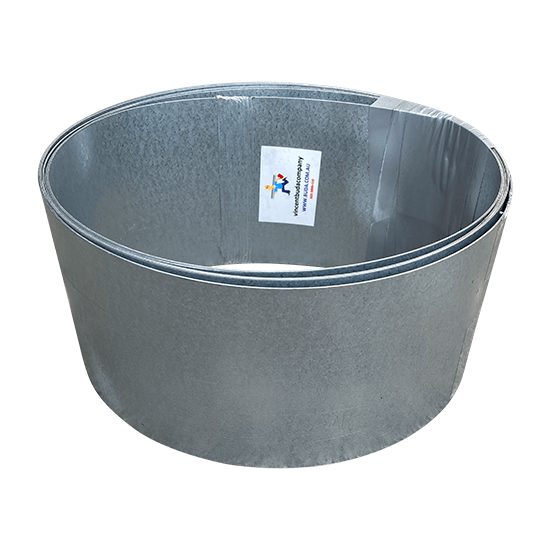

Every unit is sold in standard 3-metre lengths and comes pre-taped to ensure the grease remains contained and the sheets aligned during handling and placement on-site.
| Width | Configuration | Transport |
|---|---|---|
| 110mm | Standard Flat | Can be rolled for easy transport |
| 140mm | Standard Flat | Can be rolled for easy transport |
| 230mm | Standard Flat | Can be rolled for easy transport |
| 270mm | V-Folded Cavity Bridge | Rigid (Cannot be rolled) |
| 270mm | Standard Flat | Can be rolled for easy transport |

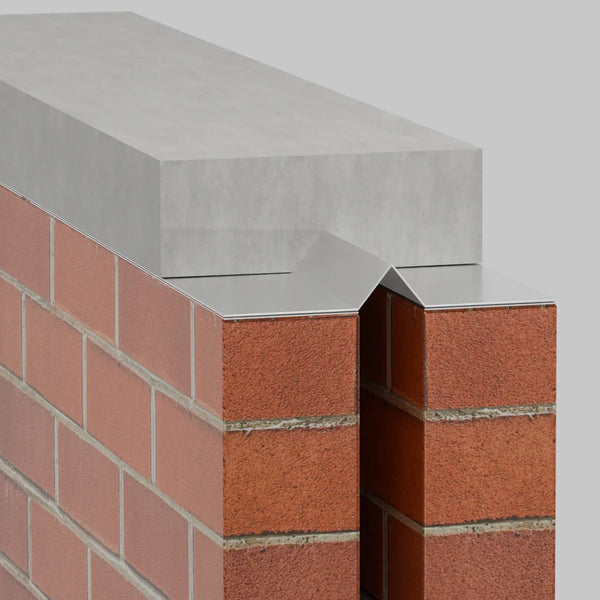

Note: The 270mm variant features a specialised “Vee” fold designed to bridge cavities, providing structural movement protection while maintaining the integrity of the wall cavity.
Why Choose Our Pre-greased Slip Joint?
- Crack Prevention: Acts as a mechanical “buffer” that absorbs the stress caused by differing expansion rates between concrete slabs and brick walls.
- Ready-to-Install: Pre-greased and taped together, these joints eliminate the mess and inconsistency of manual greasing on-site.
- Corrosion Resistant: The galvanised sheeting is corrosion resistant, ensuring the slip mechanism doesn’t seize over time due to rust.
- Australian Standard Protection: Since 1957, Vincent Buda & Company has provided the critical hardware that keeps Australian masonry compliant and crack-free.
Primary Applications
- Brick-to-Concrete Junctions: Essential where face brick meets a concrete slab or beam.
- Commercial Masonry: High-performance movement control for large-scale retail and office walls.
- Cavity Wall Construction: The 270mm V-fold is perfect for spanning internal and external skins.
- Structural Renovations: Retrofitting movement joints during major home extensions.
Pick-Ups
All stocked items are available for pickup within 2 working hours of placing your order.
Unsure if your items are in stock? Call us on (02) 9740 1500 before ordering to confirm availability.
Sydney Metro Deliveries
Courier Deliveries (Australia-Wide)
Direct-to-Door & Business-to-Business: Your goods will be unloaded using professional equipment and placed in a safe, accessible location at your destination.
Depot Delivery: Your order will be delivered to a Logistics Depot closest to your location. For details about your nearest depot, contact us on (02) 9740 1500 or sales@buda.com.au.
To allow for thermal expansion. Both the brickwork and concrete slab expand and contract throughout the day. Without a slip joint, the concrete slab bonds to the brickwork and doesnt allow for expansion and contraction. The slip joint creates seperation that allows movement for both the brickwork and concrete slab, ultimately preventing cracks and structural failure.
Not exactly, though they work together. An expansion joint (like Jointex) manages compression, whereas a slip joint manages the horizontal movement between two different structural elements.
Lay the joint flat on the supporting masonry before the pour. Ensure the surface is clean and level; the concrete is then poured directly over the slip joint.
Yes, we stock them for a variety of wall popular wall widths, including 110mm, 230mm and 270mm walls. Vincent Buda and Company ensures you have the right fit for standard Australian brickwork, available for same-day or next-day delivery within the Sydney Metro.
The V groove faces upward (toward the sky). This ensures any water that enters the junction or cavity does not track towards the building’s internal skin.
Protect your masonry from the silent forces of thermal movement. Our Pre-greased Galvanised Slip Joint is the technical solution for managing the inevitable expansion and contraction between differing building materials. By creating a low-friction separation layer at the junctions of brickwork and concrete, this joint allows materials to move independently.
Specifications
Every unit is sold in standard 3-metre lengths and comes pre-taped to ensure the grease remains contained and the sheets aligned during handling and placement on-site.
| Width | Configuration | Transport |
|---|---|---|
| 110mm | Standard Flat | Can be rolled for easy transport |
| 140mm | Standard Flat | Can be rolled for easy transport |
| 230mm | Standard Flat | Can be rolled for easy transport |
| 270mm | V-Folded Cavity Bridge | Rigid (Cannot be rolled) |
| 270mm | Standard Flat | Can be rolled for easy transport |
Note: The 270mm variant features a specialised “Vee” fold designed to bridge cavities, providing structural movement protection while maintaining the integrity of the wall cavity.
Why Choose Our Pre-greased Slip Joint?
- Crack Prevention: Acts as a mechanical “buffer” that absorbs the stress caused by differing expansion rates between concrete slabs and brick walls.
- Ready-to-Install: Pre-greased and taped together, these joints eliminate the mess and inconsistency of manual greasing on-site.
- Corrosion Resistant: The galvanised sheeting is corrosion resistant, ensuring the slip mechanism doesn’t seize over time due to rust.
- Australian Standard Protection: Since 1957, Vincent Buda & Company has provided the critical hardware that keeps Australian masonry compliant and crack-free.
Primary Applications
- Brick-to-Concrete Junctions: Essential where face brick meets a concrete slab or beam.
- Commercial Masonry: High-performance movement control for large-scale retail and office walls.
- Cavity Wall Construction: The 270mm V-fold is perfect for spanning internal and external skins.
- Structural Renovations: Retrofitting movement joints during major home extensions.
To allow for thermal expansion. Both the brickwork and concrete slab expand and contract throughout the day. Without a slip joint, the concrete slab bonds to the brickwork and doesnt allow for expansion and contraction. The slip joint creates seperation that allows movement for both the brickwork and concrete slab, ultimately preventing cracks and structural failure.
Not exactly, though they work together. An expansion joint (like Jointex) manages compression, whereas a slip joint manages the horizontal movement between two different structural elements.
Lay the joint flat on the supporting masonry before the pour. Ensure the surface is clean and level; the concrete is then poured directly over the slip joint.
Yes, we stock them for a variety of wall popular wall widths, including 110mm, 230mm and 270mm walls. Vincent Buda and Company ensures you have the right fit for standard Australian brickwork, available for same-day or next-day delivery within the Sydney Metro.
The V groove faces upward (toward the sky). This ensures any water that enters the junction or cavity does not track towards the building’s internal skin.
