Tube Fixed Metal Door Frame
Our Tube Fixed Door Frames are designed specifically for retrofit installations into existing masonry or concrete walls.
Unlike traditional brick-in frames, which must be installed while the wall is being constructed, tube-fixed frames allow installers to fit the frame after the wall has already been built. This makes them the ideal solution for renovations, upgrades, and completed openings where brick-in ties cannot be used.

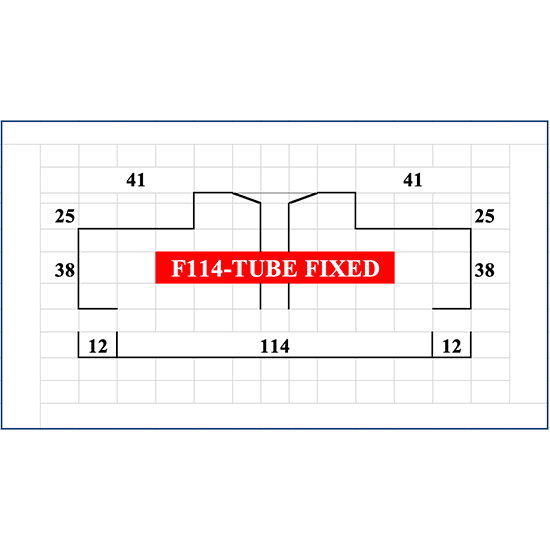

Manufactured from 1.1mm Zincanneal steel, these frames provide excellent corrosion resistance and a smooth surface ready for finishing. The profile is designed to suit 35–37mm doors, making them compatible with most common door applications.
When installed with compliant doors and hardware, these frames can achieve fire ratings of up to 2 hours.
Technical Specifications
Designed for professional installation, these frames come fully assembled and ready to install, reducing time on site.
- Material: 1.1mm Zincanneal steel for durability and corrosion resistance
- Door Suitability: Designed for 35–37mm doors
- Fixings: 7 tube fixings per stile (14 per frame) for secure masonry installation
- Hinges: 3 × 100 × 75mm screw-fix hinges, factory-fitted
- Striker: Universal striker plate positioned at 1042mm
- Assembly: Supplied fully assembled and unprimed, ready for painting or coating
- Fire Rating: Up to 120 minutes (2 hours) when installed with compliant fire-rated doors and hardware
Important Compliance Note
To achieve the certified fire rating, frames must be installed into masonry or concrete walls and correctly backfilled. Fire certification tags are a legal requirement and are sold separately.
Pick-Ups
All stocked items are available for pickup within 2 working hours of placing your order.
Unsure if your items are in stock? Call us on (02) 9740 1500 before ordering to confirm availability.
Sydney Metro Deliveries
Courier Deliveries (Australia-Wide)
Direct-to-Door & Business-to-Business: Your goods will be unloaded using professional equipment and placed in a safe, accessible location at your destination.
Depot Delivery: Your order will be delivered to a Logistics Depot closest to your location. For details about your nearest depot, contact us on (02) 9740 1500 or sales@buda.com.au.
Tube-fixed frames are used when the wall has already been built. They allow the frame to be installed into an existing opening using anchors, making them ideal for retrofit and renovation projects.
No. The countersunk bolts sit inside the tube fixing points. After installation, the holes are usually covered with builder’s bog and painted for a clean finish.
Yes. When installed with a compatible fire-rated door and approved hardware, the frame can achieve a fire rating of up to 2 hours.
Standard sizes are kept in stock and are available for same-day or next-day delivery across the Sydney Metro.
Our Tube Fixed Door Frames are designed specifically for retrofit installations into existing masonry or concrete walls.
Unlike traditional brick-in frames, which must be installed while the wall is being constructed, tube-fixed frames allow installers to fit the frame after the wall has already been built. This makes them the ideal solution for renovations, upgrades, and completed openings where brick-in ties cannot be used.
Manufactured from 1.1mm Zincanneal steel, these frames provide excellent corrosion resistance and a smooth surface ready for finishing. The profile is designed to suit 35–37mm doors, making them compatible with most common door applications.
When installed with compliant doors and hardware, these frames can achieve fire ratings of up to 2 hours.
Technical Specifications
Designed for professional installation, these frames come fully assembled and ready to install, reducing time on site.
- Material: 1.1mm Zincanneal steel for durability and corrosion resistance
- Door Suitability: Designed for 35–37mm doors
- Fixings: 7 tube fixings per stile (14 per frame) for secure masonry installation
- Hinges: 3 × 100 × 75mm screw-fix hinges, factory-fitted
- Striker: Universal striker plate positioned at 1042mm
- Assembly: Supplied fully assembled and unprimed, ready for painting or coating
- Fire Rating: Up to 120 minutes (2 hours) when installed with compliant fire-rated doors and hardware
Important Compliance Note
To achieve the certified fire rating, frames must be installed into masonry or concrete walls and correctly backfilled. Fire certification tags are a legal requirement and are sold separately.
Tube-fixed frames are used when the wall has already been built. They allow the frame to be installed into an existing opening using anchors, making them ideal for retrofit and renovation projects.
No. The countersunk bolts sit inside the tube fixing points. After installation, the holes are usually covered with builder’s bog and painted for a clean finish.
Yes. When installed with a compatible fire-rated door and approved hardware, the frame can achieve a fire rating of up to 2 hours.
Standard sizes are kept in stock and are available for same-day or next-day delivery across the Sydney Metro.
